        棱鏡概述



         Prisms are blocks of optical material with flat polished sides arranged at precisely controlled angles to each other,which deflect, deviate and rotate beams of light as well as dispersing their wavelengths.

        MT-Optics provides many kinds of high precision prisms, including as follows






        PolarizerIllustrationMaterialAngle PrecisionApplication
        Penta PrismBK71 Min. Deviation
        30 Sec. Deviation
        10Sec. Deviation
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling
        Beamsplitter Penta Prism

        BK71 Min. Deviation
        30 Sec. Deviation
        10Sec. Deviation
        Transmissio/
        Reflection:
        20/80±5 or 50/50±5
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling
        Right Angle Prism

        BK73 Min. Deviation
        1 Min. Deviation
        30Sec. Deviation
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling

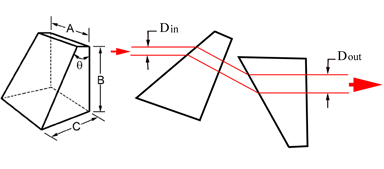

        Anamorphic PrismSF111 min. Deviation
        30 Sec. Deviation
        10Sec. Deviation
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling
        Corner Cube Retroreflectors

        BK73 Sec. Deviation
        5 Sec. Deviation
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling

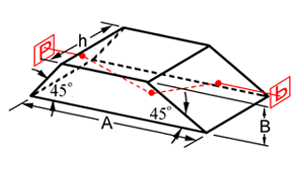

        Dove Prism

        BK71 min. Deviation
        30 Sec. Deviation
        10Sec. Deviation
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling
        Roof Prism

        BK71 min. Deviation
        30 Sec. Deviation
        10Sec. Deviation
        Plumb Level, Surveying, Alignment, Range finding and Optical Tooling


         but please keep in mind that selection of the most suitable prism is primarily dependent on the application.

           PDF to download
